Load Platforms
Food Dumbwaiter Lifts
YMK-80
The quickest way to send your meal without it going cold.

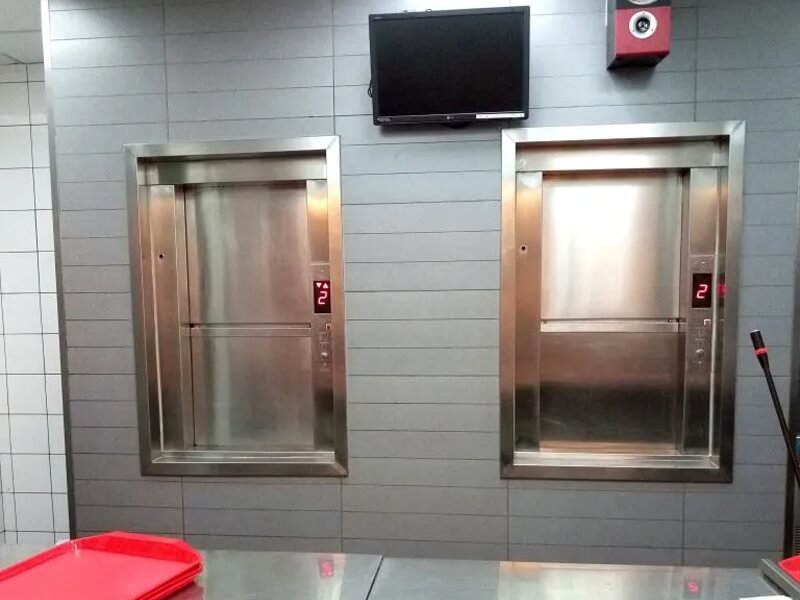

Mounting elevators (food dumbwaiter elevators) are mostly used for trays, tray trolleys, plates, glasses, etc. determined by international standards. They are elevators with a cabin that people cannot enter, designed to carry small loads of size and shape.
They have different carrying capacities from 50 kg to 300 kg. Generally, guillotine type doors are used.
Scope of application; Hospitals, restaurants, shopping centers; It is used to carry loads such as food, files, shopping baskets, laundry trolleys. Our products are CE Certified in accordance with TS EN 81-41 and 2006/42/EC Machinery Safety Directives.
Technıcal Spesıfıcatıons
Technicial Specifications
Sizes
Dimensions
| Product Information | Dumbwaiter technical specification (En) |
| Number Of Stop | Min. 2 stops (Diagonal) Max. 13 stops (Diagonal) |
| Pit Depth | Minimum 1200 mm Maximum 46000 mm |
| Speed | Minimum 0,07 Mt/Sn Maximum 0,40 Mt/Sn |
| Carrying Capacity | Minimum 150 Kg Maximum 250 Kg |
| Cabin İnner Size | Minimum 300x300 mm Maximum 1200x1200 mm |
| Platform Outer Size | Minimum 650X550 mm Maximum 1550x1450 mm |
| Cabin Feature | 304 quality stainless steel |
| Platform Floor Covering | Stainless Steel |
| Motor | Minimum Bonfiglioli (0,75 Kw – 380 Volt) Maximum Bonfiglioli (1,50 Kw – 380 Volt) |
| Control Panel | Arkel ARL 100 |
| Drive System | Hoist Drum Counter Weighted Side Weighted |
| Floor Call Buttons | Buton |
| Steel Structure | Yes No |
| Steel Structure Coating | Galvanized |
| Well Coating Material | No |
| Main Power Requirement | 380 Volt AC, 50 Hz, 3 Phase |
| Floor Door | Minimum 300x300 mm Giyotin Stainless Steel / Manual Maximum 1200x1200 mm Giyotin Stainless Steel / Manual |
| Rail | 50x50x5 |
| Steel Rope | 6.5 mm Steel |
